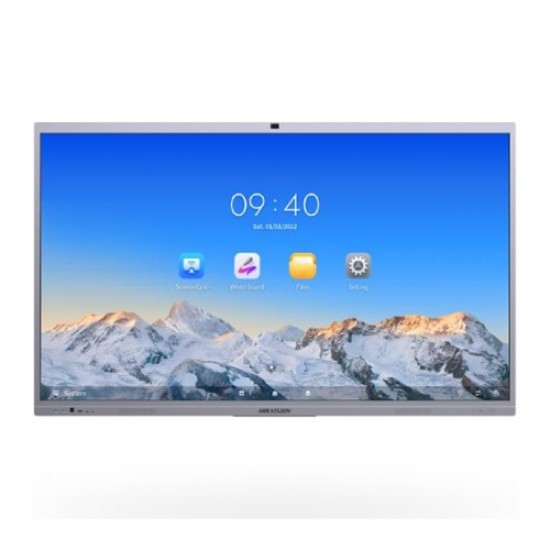

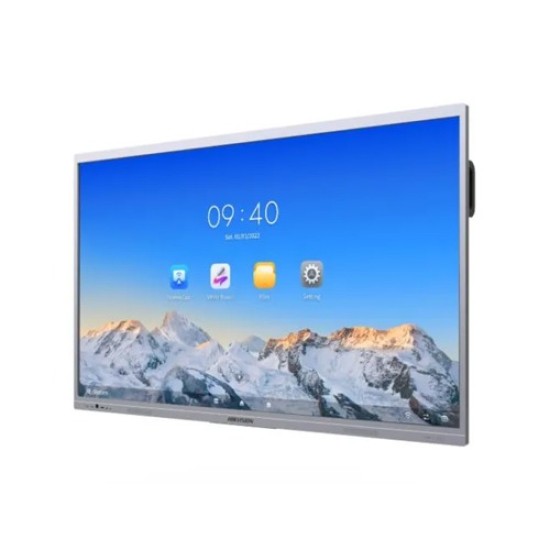

Hikvision DS-D5C86RB/B 86 Inch 4K UHD Interactive Flat Panel Display

Hikvision DS-D5C86RB/B 86 Inch 4K UHD Interactive Flat Panel Display

Stock: In Stock
Brand: Hikvision
Model: DS-D5C86RB/B

Based on 0 reviews. - Write a review

360,000৳

Ex Tax: 360,000৳

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

UHD 4K Display with Resolution of 3840×2160
Camera: Pixel 48MP for Photos & 8 MP for Video
Microphone: Omni-directional 8-array layout
Ports: HDMI, VGA, DisplayPort, LAN, USB 3.0, Type-C, Audio Ports

View more details

Ports & Slots
USB	USB 3.0 × 4 USB 2.0 × 1 Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
Display Details
Active Screen Size	86 Inch
Display Format Native Resolution	4K Ultra HD 3840 × 2160
Aspect Ratio	16:9
Picture Response Time	6 ms
Brightness (typical)	400 cd/m² (Typ.)
Contrast Ratio	5000:1 (Static) 30,000:1 (Dynamic)
Viewing Angle	178°(H)/178°(V)
Life Time	50,000 hours
Camera	Camera: Pixel 48MP for Photos & 8 MP for Video Camera Function: Support intelligent switching between Android system, OPS, and PC. Field Angle: 120°(diagonal), 110°(horizontal), 75°(vertical) Distortion: ≤2.5% Camera Resolution Ratio: Up to 4K Microphone: Omni-directional 8-array layout Mic Function: Echo reduction and smart noise-cancellation Voice Distance: 12 m Sampling Rate: 32 K Mic Sampling Rate: 16 bit Loudspeaker: Built-in 2 ×20 W+25W loudspeaker; Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 NFC: Support screen mirroring by Android phones Light Sensor: Yes
Others	Refresh Frequency: 60Hz Pixel Pitch: 0.124（H） × 0.372（V）mm Display Colors: 1.07G Surface Glass: 3.2 mm Anti-Glare Glass Surface Haze: 25%Haze Glass Bonding Method: Zero Lamination Display Area: 1428.48mmx803.52mm Working Duration: 7 × 16H Transmittance: 88% ± 3 RAM: 8GB ROM: 128GB HDCP Version: 2.3 Surface Hardness: 9H Interpolation Resolution: 32768 × 32768 Minimum Touch Object: ≥ 2 mm Touch Precision: ± 1 mm (≥ 90% touching area)
Other Features
Power	Power: 100 to 240 VAC, 50/60 Hz Standby Power: ≤ 0.5 W Power Requirements: < 107W
Touch System
Touch Point	45 point multi-touch
Touch Response Time	＜ 5 ms
Operating System
GPU	Mali-G610 MC4
Software
Operating System	Android 13.0
Connectivity
HDMI	3x HDMI 2.0 Input 1x HDMI 2.0 Output
PC Audio In	1x 3.5mm Audio 1x SPDIF
Audio out	1x 3.5mm Audio 2x12W 2.0 Stereo Speaker
LAN	x RJ45
Physical Specification
Dimensions	2197 mm × 284 mm × 1376mm
Weight	65.13 kg
Warranty
Warranty	3 Years

Hikvision DS-D5C86RB/B 86 Inch 4K UHD Interactive Flat Panel Display

The Hikvision DS-D5C86RB/B 86 Inch 4K UHD Interactive Flat Panel Display is a top-tier smart display built for advanced digital collaboration in classrooms, conference halls, and boardrooms. Featuring a massive 86-inch 4K Ultra HD display (3840 × 2160), this panel delivers crystal-clear visuals with lifelike clarity, a wide 178° viewing angle, and 400 cd/m² brightness for consistent performance in any lighting. Equipped with zero lamination 3.2mm anti-glare glass, 45-point multi-touch, and a fast <5ms response time, the DS-D5C86RB/B ensures smooth, precise interaction. Its durable 9H surface hardness makes it ideal for intensive, long-term use with a 50,000-hour lifespan and 7×16H operation capability. Running on Android 13.0, this smart panel is powered by an octa-core processor (Cortex-A76 × 4 + Cortex-A55 × 4), Mali-G610 MC4 GPU, 8GB RAM, and 128GB ROM—ensuring fast, responsive performance. It also supports HDCP 2.3 for secure content delivery. Connectivity includes 3 HDMI inputs, 1 HDMI output, 2 USB Type-C ports (with 15W/65W charging and DP 1.2 support), USB 3.0 ×4, VGA, LAN, RS232, and more. With Bluetooth 5.1, Wi-Fi, NFC screen mirroring, and a built-in light sensor, this display is packed with smart features. Advanced features include a high-resolution 48MP + 8MP camera, 120° wide-angle view, 8-array mic system with 12-meter voice pickup, noise cancellation, and echo reduction—ideal for seamless video conferencing.
